Genogram Manipulative Relationship Symbol

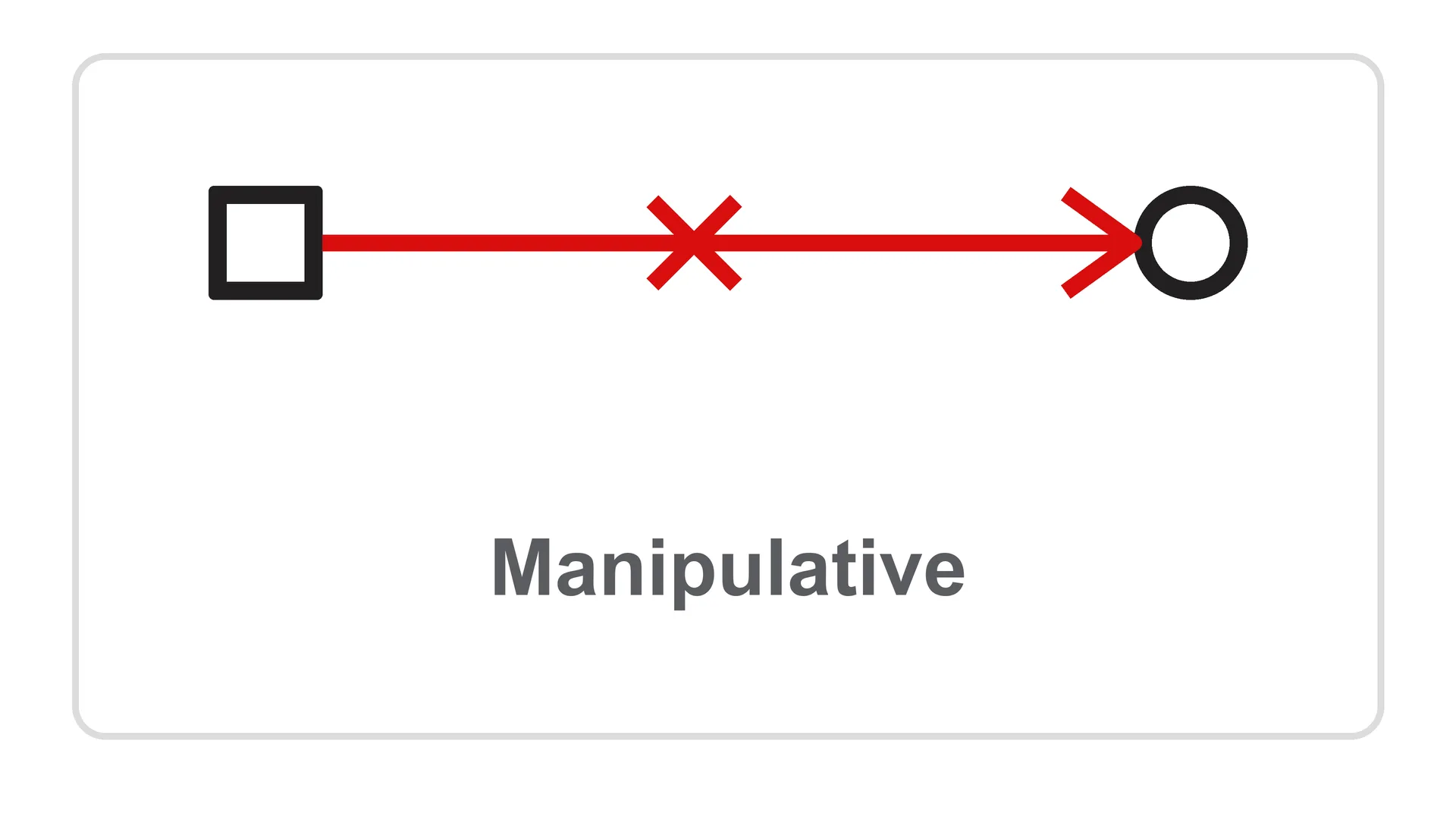

The manipulative relationship symbol is shown as a red line marked with an X at the center, with an arrow from the person manipulating toward the target. Use it when influence, deception, or pressure is the central dynamic. This guide explains how to distinguish manipulation from control, abuse, and hostility.

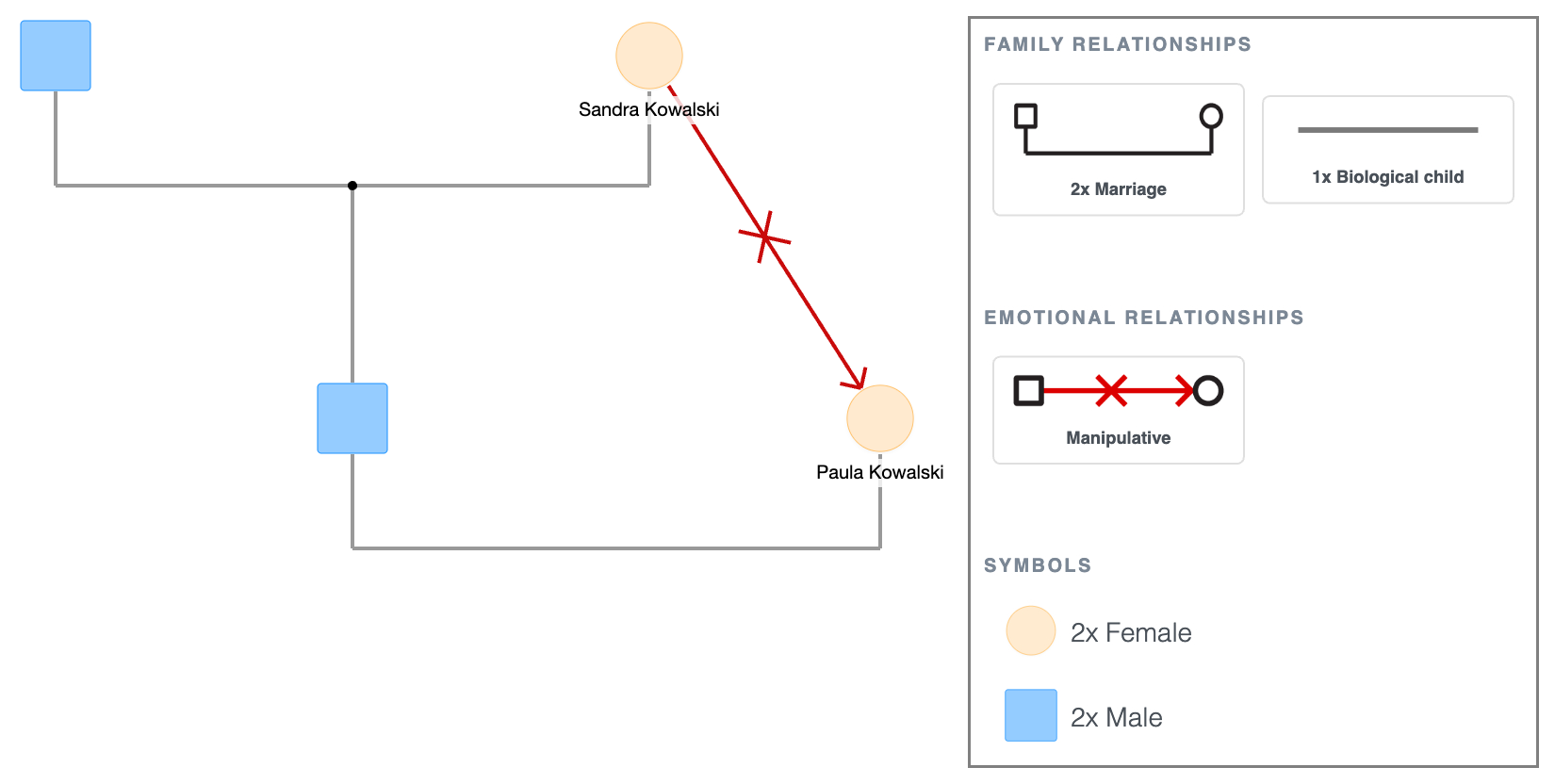

Manipulative Symbol Example in a Genogram
Manipulative Symbol Example in a Genogram
Sandra Kowalski regularly guilt-trips her daughter-in-law, Paula Kowalski, into agreeing with decisions Paula doesn't actually want, shifting blame onto her whenever things go wrong.
Sandra sits in her existing structural position as Paula's mother-in-law, and the manipulative line runs from Sandra to Paula, arrow pointing at Paula.
Manipulative vs. Controlling vs. Abuse
- Controlling: red line, boxed X, directional. Overt restriction of the other person's autonomy or decisions.
- Manipulative: red line, plain X, directional. Covert influence, guilt-tripping, blame-shifting, or pressure rather than outright control.
- Abuse: indigo line, directional. Abusive conduct broadly.
Controlling is the what, restricted autonomy. Manipulative is the how, the tactics used to get there.
The two can appear together on the same pair of people, but they're not interchangeable.
How to Add It in EasyGenogram
Select the relationship line, choose Manipulative, click the person doing the manipulating first, then the target.
Manipulative Symbol Example in a Genogram
Explore this genogram and adapt it to your needs.
FAQ
What does the manipulative symbol in a genogram look like?
A red line marked with an X at the center, with an arrow pointing from the person manipulating toward the target.
Is the manipulative genogram line directional?
Yes. The arrow shows who's exerting the influence and who it's directed at.
What's the difference between manipulative and controlling genogram symbols?
Controlling marks overt restriction of someone's decisions or autonomy. Manipulative marks the covert tactics used to influence someone, guilt, blame-shifting, pressure, which may or may not involve outright control.
What's the difference between manipulative and abuse?
Abuse marks abusive conduct broadly. Manipulative is narrower, it specifically marks psychological influence tactics rather than the full range of abusive behavior.
Can a manipulative dynamic be mutual?
Not in one line. Add the manipulative line twice, once per direction, if both people manipulate each other.
